BAT Hammerhead

The next batch will be available late February 2025!

$430.00 – $1,885.00

Description

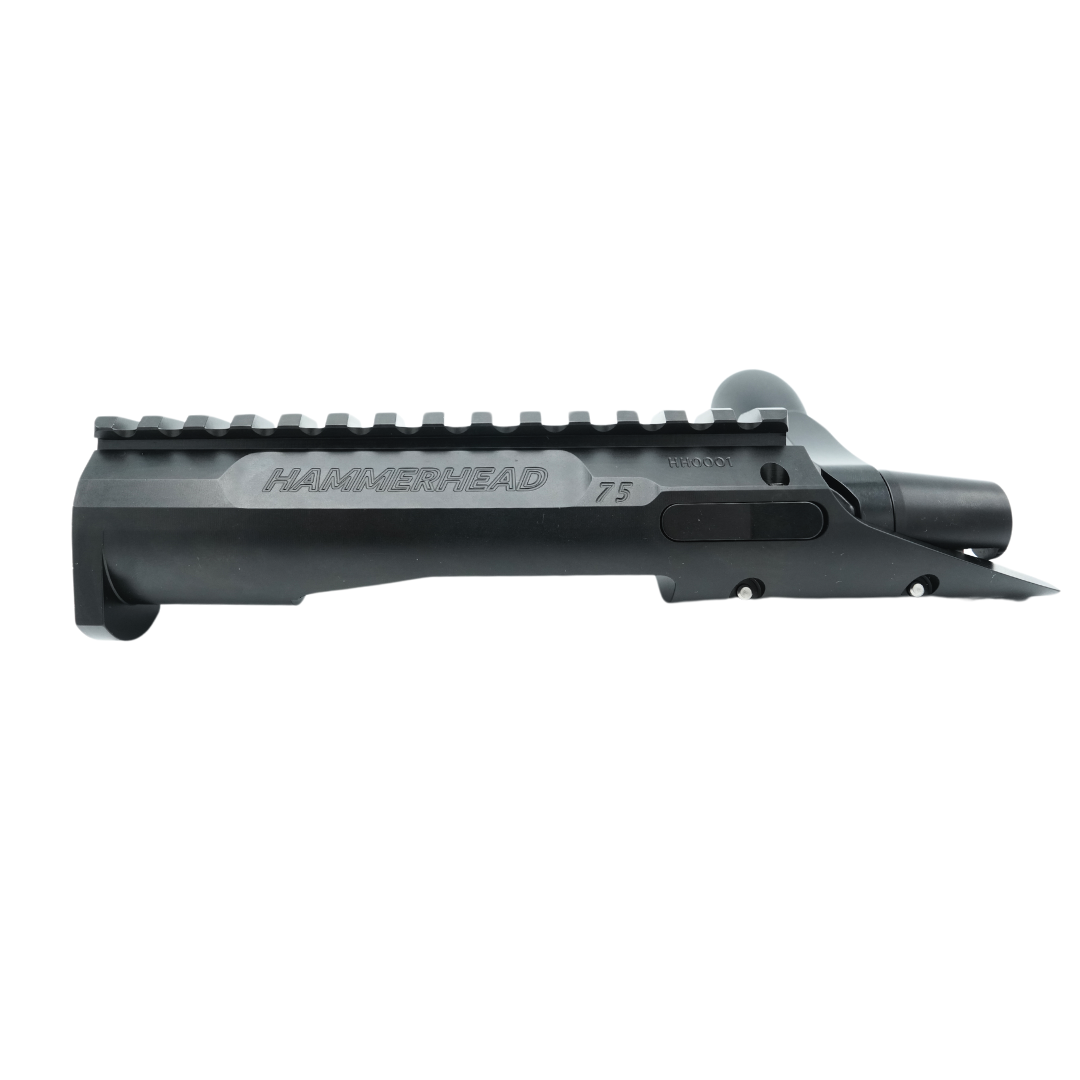

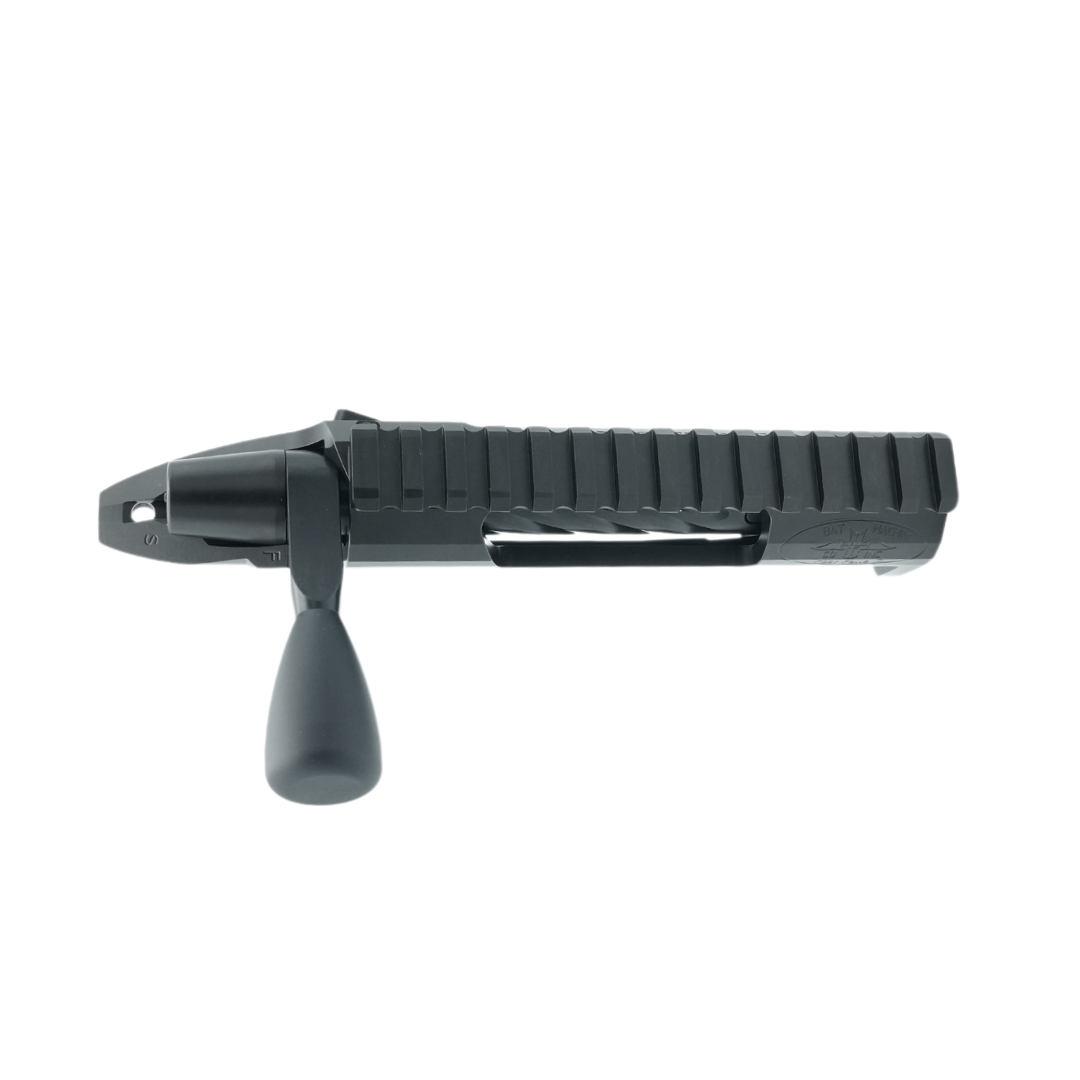

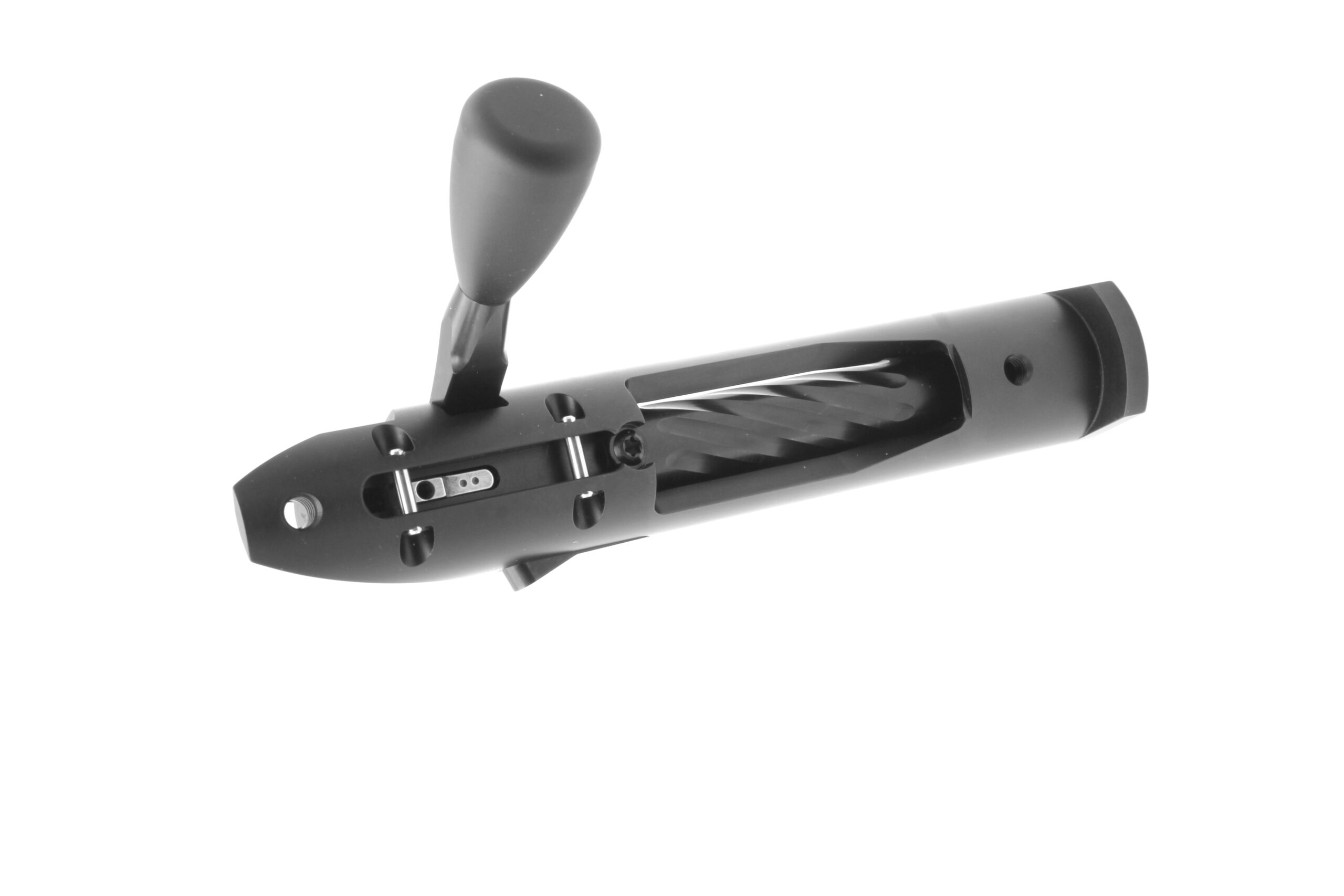

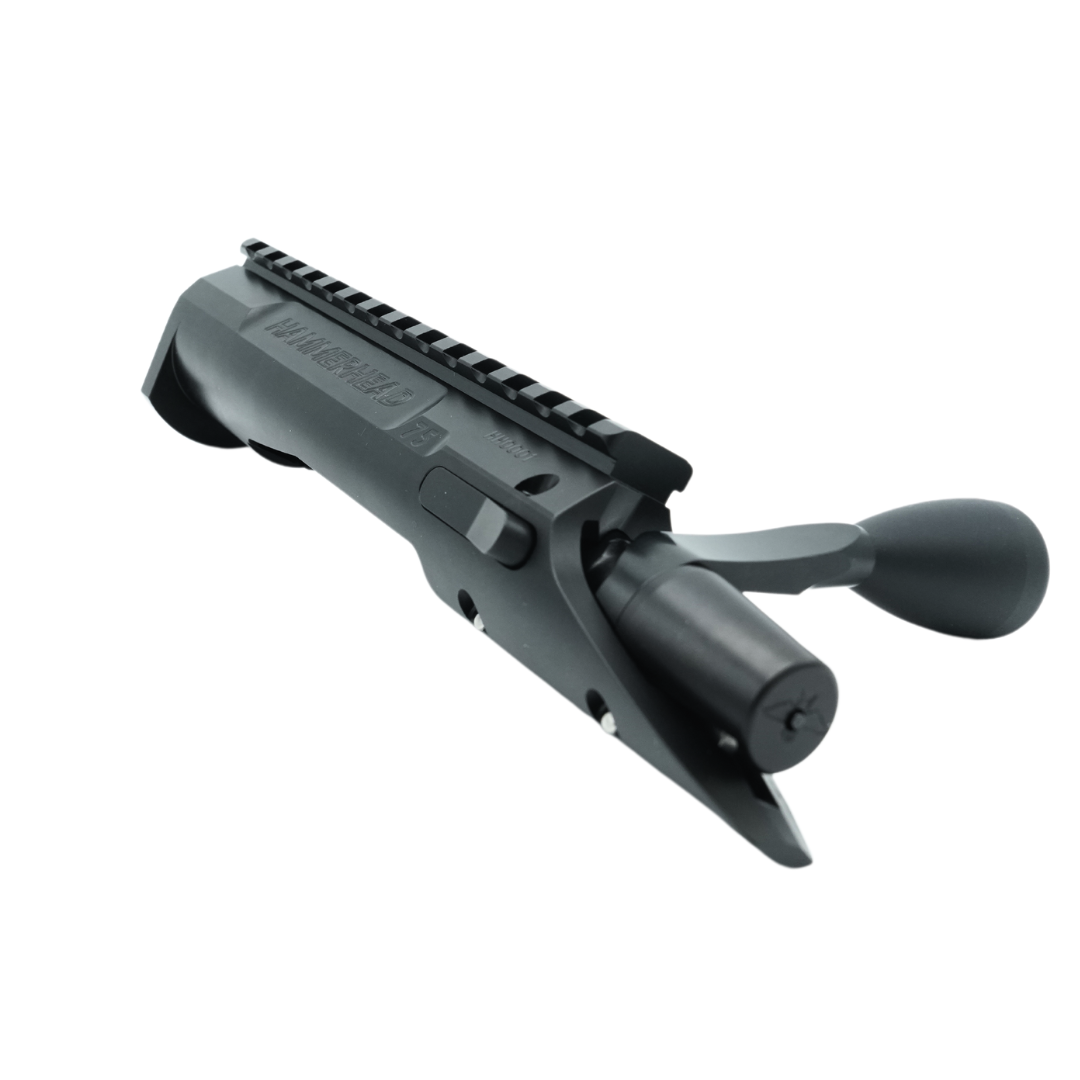

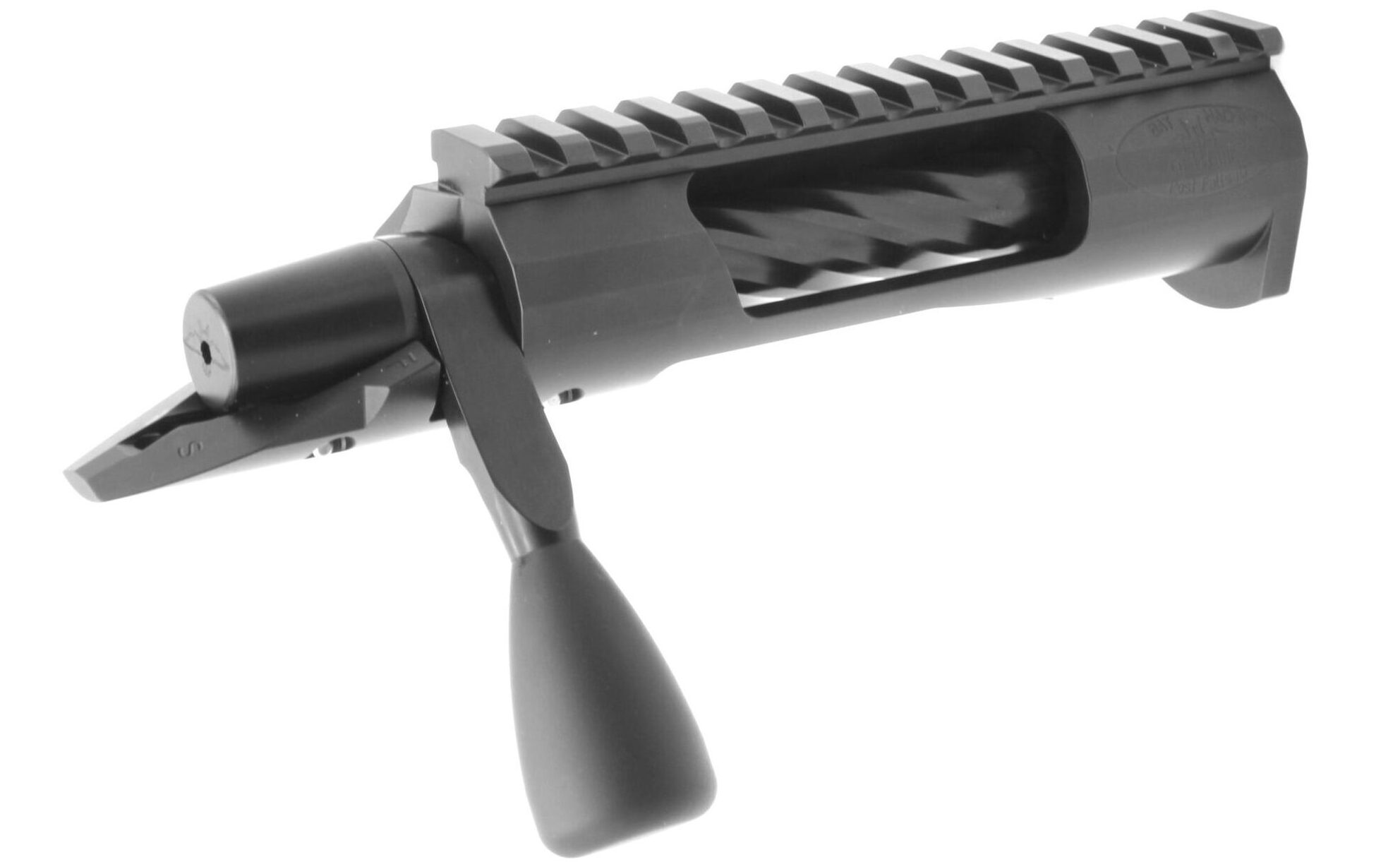

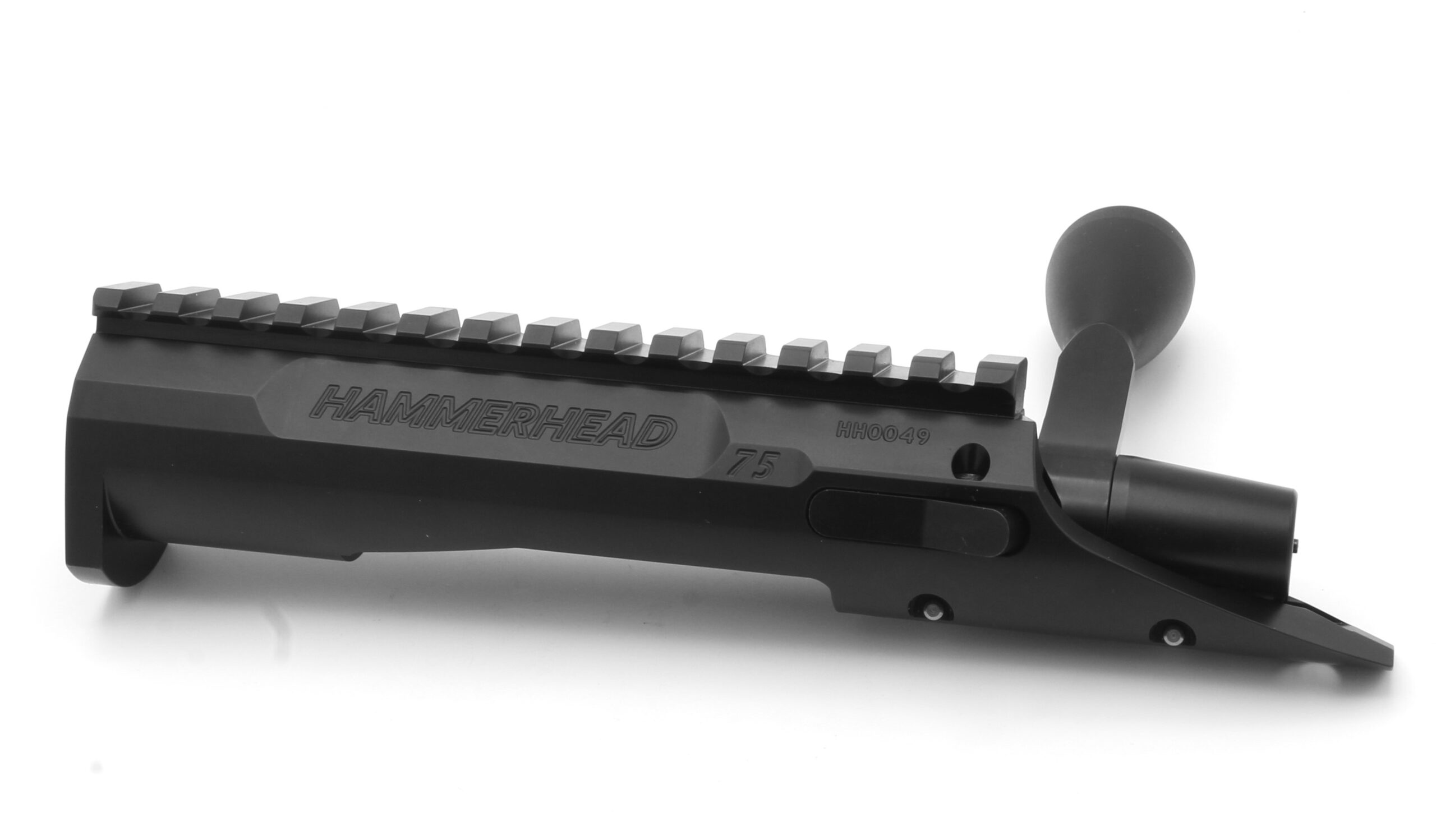

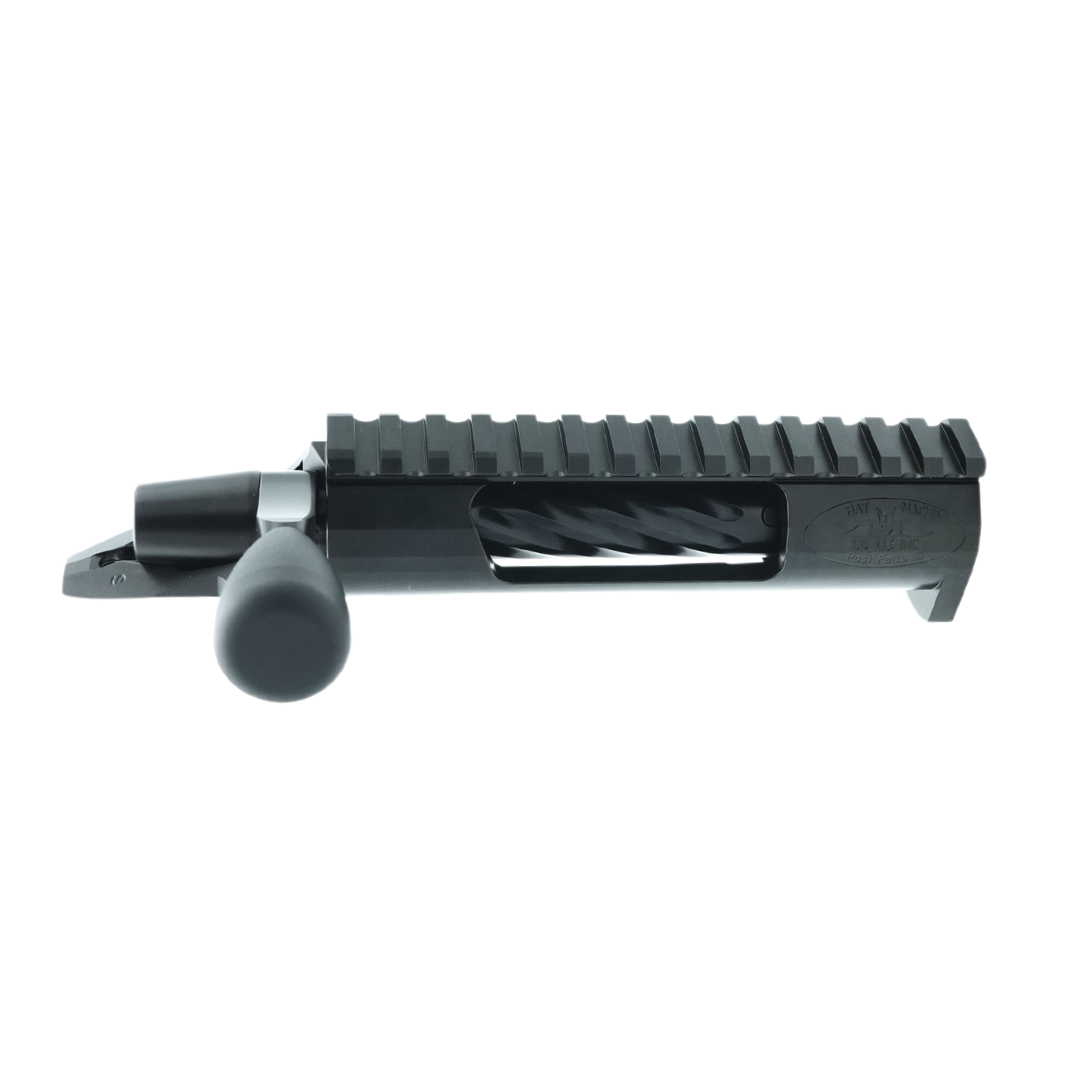

The all new BAT Hammerhead action purpose built for competition shooting.

Action Features:

  • Short Action Right Handed only
  • 75 degree 2 lug bolt
  • AW Mag cut, accept both AW and AICS mags
  • Dual position bolt stop for standard length and BR/Dasher length, shorter length is .350″ shorter than standard
  • Improve cycling speed with a shorter bolt lift and shorter bolt pull
  • Remington 700 Footprint with Integrated Full 20 MOA Picatinny rail and integrated .250″ recoil lug
  • Extended ejection port for those high performance cartridges
  • Available in Standard .480″ and Magnum .550″ bolt faces, can swap bolt faces between the two
  • Entire action and bolt Black Nitride+
  • 720″ diameter 75 degree spiral fluted modular bolt, can swap bolt faces without replacing entire bolt
  • Wire EDM cut lug-ways with 0035″ bolt to body clearance that is optimal for field use
  • Tool-less field serviceable and Melonited firing pin assembly
  • 1.0625″ x 18 Tenon threads, will not work with standard REM 700 prefit barrels
  • Unknown Munitions offers prefit barrels for all BAT actions
  • M16 Extractor for Standard and Magnum bolt face, DLC Coated
  • Replaceable bolt knob with 5/16-24 threads, titanium bolt knobs available HERE
  • Available exclusively from Unknown Munitions, an Authorized BAT Machine dealer
  • Works with our UM DBM and Mag with 2.890″ inside mag length
  • BAT Action prints found HERE
  • Made right here in Post Falls Idaho.

The TR action has been upgraded and replaced by the Hammerhead action with these changes:

  • 75 degree bolt throw
  • Two bolt stops included (one for Dasher length & one for standard)
  • More bolt stop area and Larger bolt stop pin
  • Bolt Stop pin now comes from the top
  • Adjustment screw to stop upward travel of center feed boxes
  • Softer Ejector spring
  • Easier to snap over M-16 extractor
  • No recessed bolt nose
  • No trigger hanger
  • Improved looks and different bolt knob shape

*** Must ship to an FFL of your choice, please have them email us a copy of their FFL referencing your name.

Additional information

PRODUCT

223 ACTION, STANDARD ACTION, MAGNUM ACTION, LEFT 223 ACTION, LEFT STANDARD ACTION, LEFT MAGNUM ACTION, 223 BOLT NOSE ONLY, STANDARD BOLT NOSE ONLY, MAGNUM BOLT NOSE ONLY
